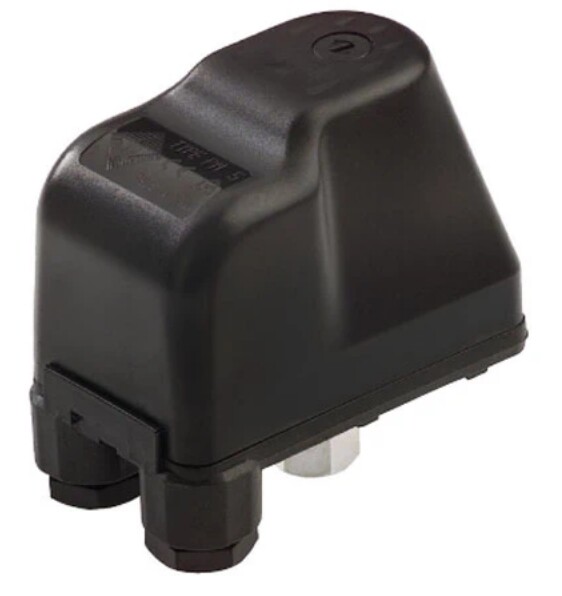

0 - 5 Bar 1/4" BSP Pressure Switch
Cheapest shipping from £14.40
Stock Status:
10 pcs
Delivery Status: 1-3 days
Recommended Price: £43.20
Description
The PM5 Water pressure switch automatically starts and stops the electric water pump according to the set pressures. Commonly used in agricultural, irrigation, and borehole applications
Adjustment Range 1-5 Bar
FEATURES
Pressure switches for use with water in autoclave systems
Automatically starts and stops the electric water pump according to the set pressures
Electric Contacts: normally closed and made of brass alloy with Ag-Ni surfacing
Terminals with M4 screws and 8x8mm pressure dice
NBR rubber membrane with textile insert (food grade)
1/4″ F hydraulic connection made of galvanized steel
Standard protection degree IP 44
Max ambient temperature 55°C
Tear-resistant cable clamps
Technical Data
| Pressure Range | 1-5 Bar |
| Factory Pre-Set Setting | 1.4-2.8 Bar |
| Minimum Differential | 0.6 Bar |
| Maximum Differential | 2.3 Bar |
| Rated Current | 16A (10)A |
| Rated Voltage | 250V |
