Pulsar 50/80M Pump
Cheapest shipping from £36
SKU: 60210513
MPN: 60210513
Stock Status:
1 pcs
Delivery Status: 1-3 days
Recommended Price: £1,353.60
Description

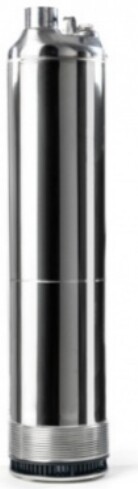

5" Diameter multi impeller submersible pump with 15 meters of cable. This pump has a 1.25" BSP top connection and is water cooled.
Capable of 120 litres per minute at 2 bar, down to zero flow at 7.5 bar.
Pump body constructed in AISI 304 stainless steel with technopolymer (noryl) impellers, diffusers, filter and oil chamber. The pump features a double mechanical seal with interposed oil chamber, ceramic-carbon on the motor side and silicon carbide on the pump side. The applied sealing system guarantees the watertight seal of the motor and the good functioning of the mechanical seal even in case of short dry running.
Technical Data
| Flow rate maximum | from 0,9 m3/h a 7,2 m3/h |
| Head up to | 88 m |
| Maximum immersion depth | 20 m (12 meters on the plate for 15m |
| cable length) | |
|---|---|
| Type of pumped liquid | clean, free from solid or abrasive substances, |
| non-viscous, non-aggressive, non-crystallized and chemically neutral | |
| Sand quantity | 50 g/m3 |
| Liquid temperature range | from 0°C to +40°C |
| Flanges, thread | 1” 1/4 GAS |
| Pump maximum diameter | 138 mm |
| Impeller/s material | technopolymer |
| Maximum number of starts | 20/h |
| Non-stop service | IP 68 |
| Protection class | F |
| Motor insulation class | 230 V 50 Hz |
| Power cable (m) and plug | 3x230 V 50 Hz / 3x400 V 50 Hz |
| Single phase power input | 15 m H07RN-F |
| Possible type of installation | fixed or removable, in vertical or horizontal |
| position | |
| Special versions on request | different voltages and frequencies, different cable length |
| Certification | CB report is available |
