Esybox Mini Twin
Description

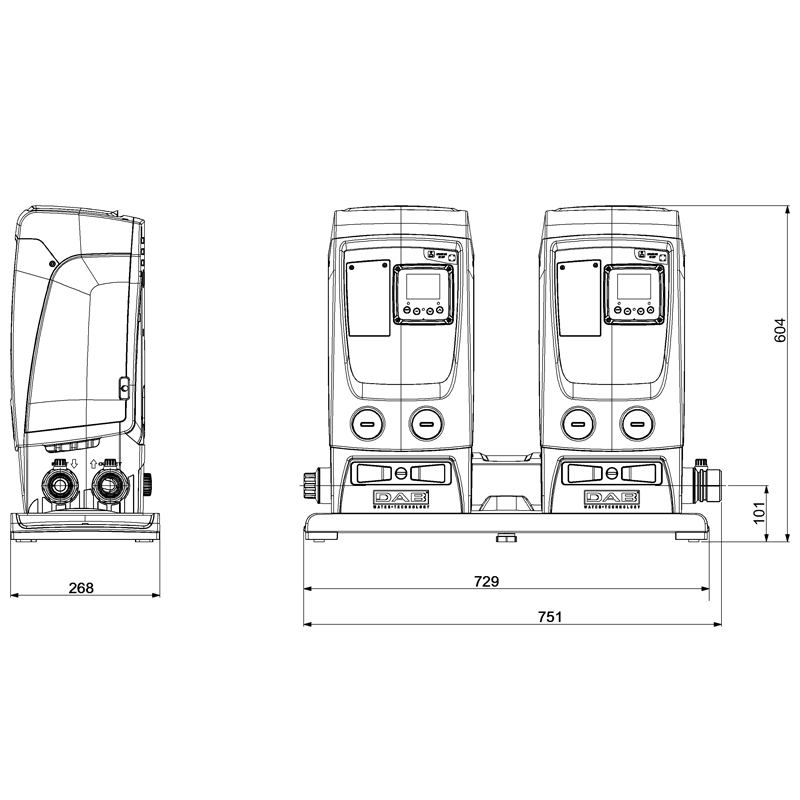

Incorporating two standard Esybox Mini 3 units mounted on a quick release base. This unit has 1.25" BSP connections, two 13 amp plugs. The pumps communicate via bluetooth to allow auto-sequencing.
(Delivered in three boxes, some simple assembly required) Electronic self-priming multi-impeller pressurization system for domestic pressurisation, rainwater reuse, ground water, gardening and irrigation and for watering small gardens in residential building service. It is possible to create groups of max two pumps. It supports the remote control function thanks to the DConnect service integrated directly into the system.
Self-priming multi-impeller pump. Protective hull in sound-absorbing ABS. Technopolymer impellers. Motor shaft in stainless steel. Non-return valve and integrated pressure vessel.
Adjustable display. The variable frequency drive function saves energy and protects against water hammer. Guided procedure for the first start-up, easy configuration, possibility to view the alarm history
Technical Data
| Impeller diameter [mm] | 104 mm |
| Head (H) max [m] | 64.7 m |
| Insulation class | F |
| Nominal Speed [RPM] | 3050 r/min |
| Flowrate (Q) max [l/min] | 180 l/min |
| Protection degree (IP) | IP X4 |
| Room temperature maximum [°C] | 50 °C |
| Head (H) Preset [m] | 30 m |
| Head (H) Max [m] | 60 m |
| Liquid temperature maximum [°C] | 40 °C |
| P1 max [W] | 850 W x 2 |
| Power supply frequency | 50 Hz / 60 Hz |
| Power supply voltage DELTA (1P - Running) max [V] | 240 V |
| Motor Poles | 2 |
