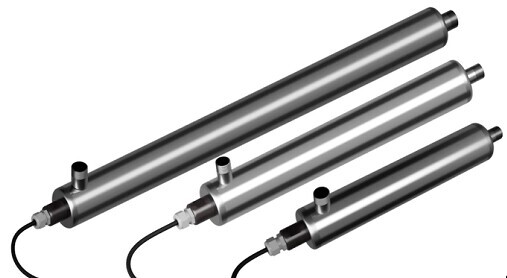

Q40 Single Ended UV Unit
Description
The Pumpmasters SE range of UV disinfection units are manufactured in the UK. These are used widely for purification of private water supplies, they are compact, economical and designed with the consumer in mind.
Each unit utilises commonplace single ended 254 nM UV lamp technology. Sized correctly these achieve a disinfection dose of 99.99(+)% reduction of all relevant parasites and bacteria. Making the system not only economical for energy running costs, but also for replacement UV lamps.
Single ended UV lamps also make servicing the equipment very simple.
It is every important any particulates or sediment does not obstruct the UV light. We recommend the use of a correctly sized 5 micron pre filter. These are also available from us.
The lamp should be replaced after 8760 hours use (approx 1 year) to ensure efficient operation. The units are suitable for connection to a 110 - 240 volt, 40 - 60 Hz single phase domestic power supply.
Technical Data
| 316 Stainless steel UV unit with 1" BSP connections and controller. | |
|---|---|
| Uses a 36 watt Single Ended 254nM UV lamp. | |
| Up to 38.3 litres per minute* | |
| • Includes wall mounting bracket. | |
| • Long life / High Reliability UV Lamp. | |
| • 10 Bar Working Pressure (max). | |
| • Simple To Install. | |
| • Audible lamp fail indicator. | |
| • Visual lamp failure indicator. | |
| • Lamp life (days remaining) digital display. | |
| • Total operating days. | |
| • Simple To Service. | |
| • Electropolished Chamber. | |
| • Commonplace UV Lamps. | |
| • Lamp / Electrical Failure Indicator. | |
| • UV Lamp Status Indicator. | |
| • Volt free (dry) contacts Designed for ease of installation and maintenance. | |
| *Flow rate quoted is based on 40 mj/cm2 and a water transmission rate of 98% |
